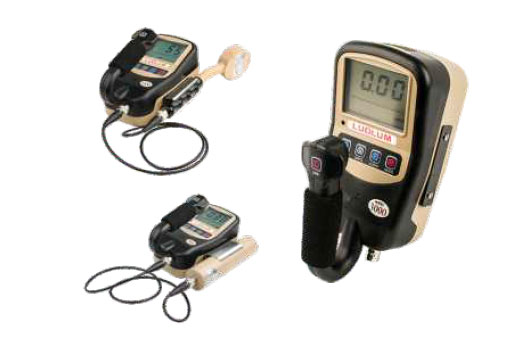

Ludlum Model 3000
Digital Survey Meter
• Large Backlit LCD for Ease of Reading
• Auto Ranging
• Compatible Detectors : GM, Proportional, Scintillation
The Ludlum Model 3000 is a versatile, lightweight,
ergonomicallydesigned
instrument used with an external
detector for alpha, beta, or gamma radiation survey. Three
modes of operation RATE,
MAX, and COUNT are
available
for the user. Measurements can be collected in two sets of
units (primary and secondary) for RATE and MAX modes in
cps, cpm, Bq, dpm, mR/hr, or μSv/h units. The user can
switch between two sets of chosen units by simply pressing
the Units button.

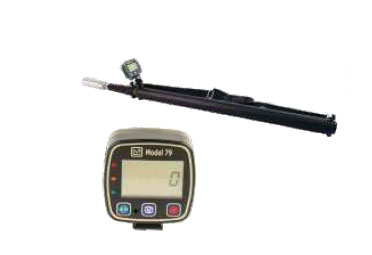

Ludlum Model 79/2
Stretch Scope Survey Meter
• Lightweight Approximately
1/3 the Weight of Comparable Instruments
• 1.1 m (45 in.) to 4.5 m (177 in.) Telescoping Carbon Fiber Pole
• Energy Compensated GM Detector
• Range: 0.001 mSv/h to 0.04 Sv/h (0.1 mR/hr to 4 R/hr)
• 1 μSv/h (0.1 mR/hr) Display Resolution

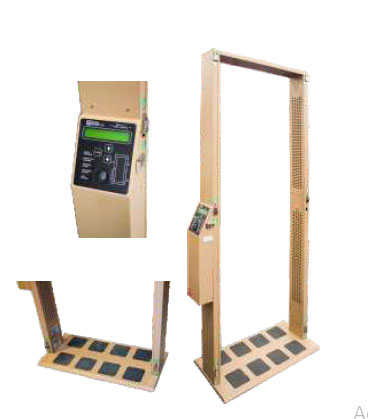

Ludlum Model 52-1, 52-5 & 52-6 Series
Portable Portal Monitors
• Portable
• 61 cm (24 in.) or 81.3 cm (32 in.) Wide Opening
• Plastic Scintillator Detectors
• Builtin
Person Counter
• Background Updating and Subtraction
• Sets Up In Minutes
• Easy to Operate
The nonvolatile
parameters are preset at the factory to detect a 1.0 μCi
137Cs source in a 10 μR/hr background field. The electronics are
microprocessorbased
for ease of setup and reliability. Status LEDs indicate
countcycle
status. Audible signals accompany the LEDs for additional
indication. Detector counts, background, and all parameters may be viewed
on the Liquid Crystal Display (LCD). All setup is accomplished by way of
pushbuttons located below the LCD.
