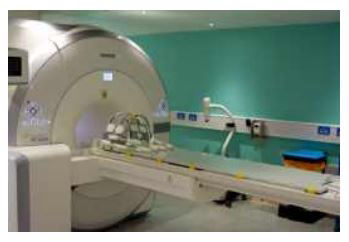

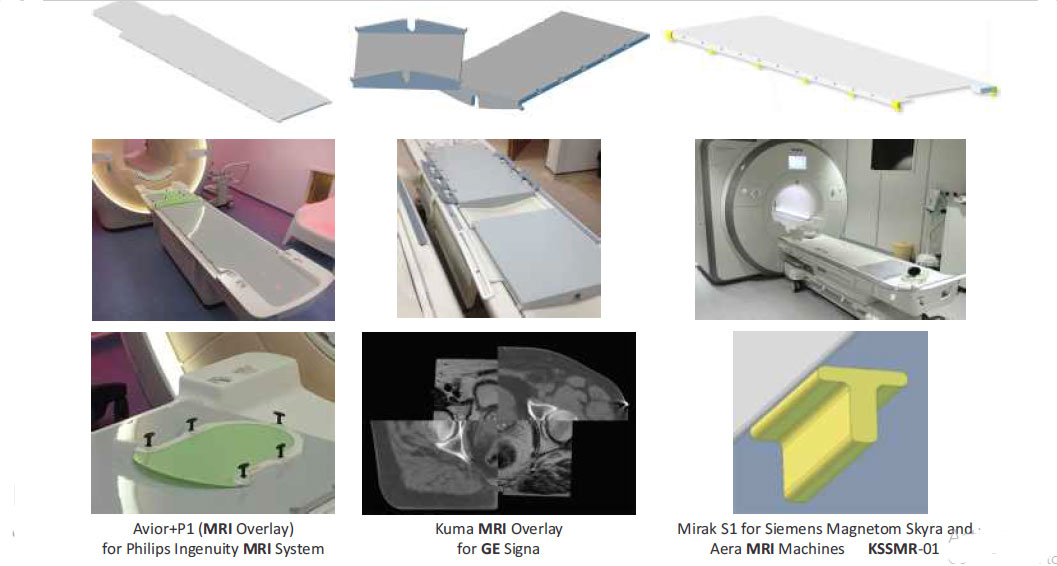

The Klarity MRI overlay provides a clean and flat surface for accurate
patient positioning and indexation to enable optimum repeatability
between imaging and treatment. Image fusion with CT images can be
undertaken very quickly as table curvature is eliminated.
The Overlay covers the entire cushioned patient area and is raised
10mm above the top level of the rails. Bright colored spacers locate
the overlay perfectly parallel to the table. The width matches most
linear accelerator systems, providing broad compatibility.
It's low weight of less than 11lbs and its high resilience make the
overlay highly suitable for busy MRI rooms, where RT planning in combined with diagnostic scans and the overlay needs to be removed on a regular basis. The head end has a cutout to fit around the head coil unit. It also provides semi‐circular recessed indexing points for two‐pin indexing bars and other positioning accessories. The Overlay has low attenuation. It is fully MRI compatible, RF compatible, and nonconductive.
Dimensions: 172.6cm length x 53cm width x 2cm thickness
