Gold Fiducial Markers
IZI Medical Products provides standard and elongated gold
markers to better verify localization. IZI provides various gold
fiducial markers to meet your specific needs to enhance accuracy
and efficiency during radiation therapy.

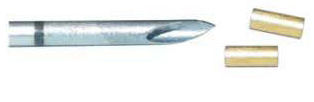

Gold Fiducial Markers are implantable markers used in
IMRT, CRT, and IGRT treatment to provide real‐time
accurate localization of the treatment volumes. The
needles are used for the interstitial placement of gold
seed markers. Once implanted, the gold markers serve as
localization devices for the purpose of radiation therapy.
These markers are a necessity during cases where the treatment volume moves with respect to external skin markings.
IZI Gold Fiducial Markers are used in soft tissue cases like the prostate, liver and lung.
Instructions for Use:

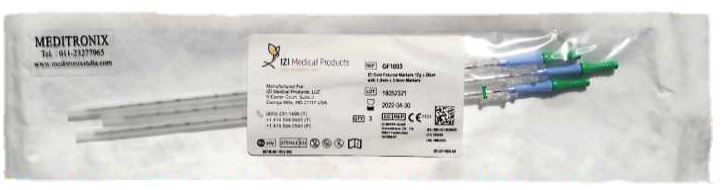

• Remove the “sterile” Fiduciary Marker needle from the sterile pouch,
• Remove the protective sheath from the needle.
• Insert the sterile needle into the desired depth and location /
DO NOT remove or advance the stylet during insertion.
• Once the needle has been placed remove the stylet lock from the stylet.
• While holding the stylet steady withdraw the needle cannula to eject the marker.
• Discard of the needle in appropriate sharps disposal containers or by standard hospital sharps disposal procedures.
Specification
Pre‐waxed needles with gold fiduciary markers
Sterile, biocompatible interstitial needles each containing a solid gold marker
Gold Marker Sizes: 1.2mm x 3.0mm ‐ pack of three markers

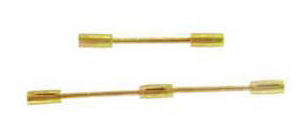

FlexiMarc Gold Fiducial Markers (Non-Migrating)
• Uses node technology for better visibility
• Specifically shaped to prevent migration
• Available in 2 or 3 node configuration
• One marker provides 2 distinct reference points
• Visible in TRUS, BAT, Portal, MRI, CT and x‐Ray
• Multiple diameters and needle guides to meet your needs
• 0.9 mm diameter with 18 GA needle 2 or 3 node
• 1.2 mm diameter with 17 GA needle 2 or 3 node
• Available in 1cm & 2cm lengths
