A quick check for personnel or object surface contamination. In combination
with a suitable detector from the SFP100
series, it can detect alpha, beta or
gamma contamination.

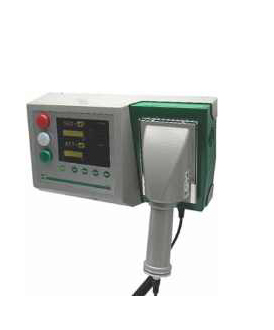

The FCM11
contamination monitor consists of a base unit with a user display
and a handheld probe with an actve detection area of 100 cm2.
To measure contamination, the probe is removed from the cradle on the base
and moved over the surface being checked. The probe is suitable for checking
the contamination of such as persons, clothing, tools or materials.
SPECIFICATION
• Detector type : scintillator
• Active area : 100 cm2
• Dimensions : (W x H x D) 374 × 212 × 109mm

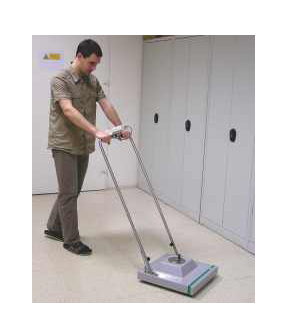

Floorscan Floor Contamination Monitor
A device intended for signalisation of Floor surface contamination
The FloorScan series floor contamination monitors are intended for the
measurement of surface contamination by alpha, beta and gamma emitting
radionuclides on floors. The monitor can be used in nuclear power plants,
radiochemical
plants, research institutes with reactors, PET centres, etc.
SPECIFICATION
Detector type
• Plastic scintillator
• Active area 525 cm2 or 1050 cm2
• Effective energy range 0,2 2,5MeV
• Dimensions (W x H x D)
FloorScan525 FloorScan1050
445 × 1070 × 898 mm 785 × 1090×962 mm
LCM-300 Laundry Contamination Monitors
A device intended for the detection of laundry contamination by
alpha, beta, and gamma radionuclides. It can be also used for checking
the contamination of other objects of a suitable size.
The Laundry Contamination Monitors LCM300
series are primarily
serve for checking contamination of washed, dried, and laidout
laundry originating from areas where it could have been in contact
with alpha, beta and/or gamma radionuclides. They can also be used
for checking contamination of other items of suitable size.
