Quart dido CT
Advanced Technology and Improved Methodology

The QUART didoCT meter is designed for easy and precise dose‐width product measurements.

The meter does not require any pre‐se􀁋ng procedure for direct reading of DWP, rate and ti

me parameters. Its detector part is based on solid‐state technology. Unlike conventional ion chambers, the QUART didoCT is not affected by variations in environmental temperature or air pressure and does not require correction.

The didoCT is equipped with a backlit display to assure swift readings even in darkened environments. To provide the ability to track generator characteristics, the dose or DWP rate is refreshed continuously on the meter display while the measurement is running.

The meter is powered by a rechargeable battery. One charge is sufficient to last approximately 80 hours of continuous use. Recharging the meter until full takes only between 3–4 hours. A warning will appear on the display when the battery charge is running low.

Technical Specifications

DWP    : Range 1.5 mGy*cm – 999 mGy*cm
                                        Uncertainty       +/‐ 5 %

DWP : Rate Range 2.0 mGy/s*cm – 999 mGy/s*cm

Modes (3) One‐second‐mean rate refreshed four times per second

(real‐time);

Total average; Maximum

Uncertainty................... +/‐ 5 %

Exposure Time : Range 0.5 ms – 300 s

Mode Duration of full exposure

Uncertainty ± 0.5 ms

Weight : Base Unit 180g

Detector Unit 120g including cable

Size : Base Unit 17 x 7 x 4.5 cm (L x W x H)

Detector Unit 16 x 1.3 cm (length x diameter)

Active length up to 100 mm (marked)

Operating Temp : 15‐35°C

Diagnostic QA - Dose Dose Rate Meters

QA Tools & Phantoms
Pages:( 1 2 3 4)

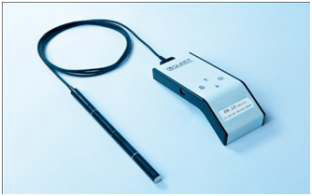

QUART didoCT Probe

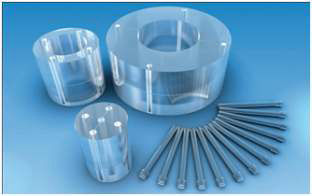

CTDI Phantom
