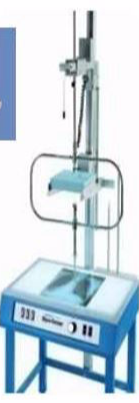

Meditronix Manual Styrofoam Cutter

‘Medironix’ Manual Styrofoam Cutter is the specialised equipment for the radiation therapy department to cut high consistency block foam mold in CRT. It is easily adjustable to accommodate many source‐to‐tray and source‐to‐film distances. A verification light
allow the operator to check the accuracy of each cut before the blocks are cast. Hot wire with a tension‐adjustable organ to ensure hat cutting surface. Lowest price in the industry..

Styrofoam Cutter

▪ Stand alone manually controlled high precision hot wire cutter for photons

▪ Adjustable source‐to‐tray and source‐to‐film distances

▪ Verification light to check the accuracy of each cut before the block is cast

▪ Stainless Steel 304 structure

Specifications:
• Maximum cutting area with one block : 380x380mm
• Maximum distance of source‐to‐film : 1400mm
• Maximum distance of source‐to‐tray : 560mm
• Maximum cutting thickness : 140mm
• System dimensions (LxWxH) : 700x600x2300mm

Radiation Oncology Meditronix Manual Styrofoam Cutter in India Styrofoam Blocks

Meditonix Electron Foam Cutter
This is a low‐cost, counter‐top hot‐wire cutter.
Features:
▪ Table top model
▪ Provides white acrylic top as cutting surface
▪ The unit has an easily replaceable Nic‐Chrome cutting wire

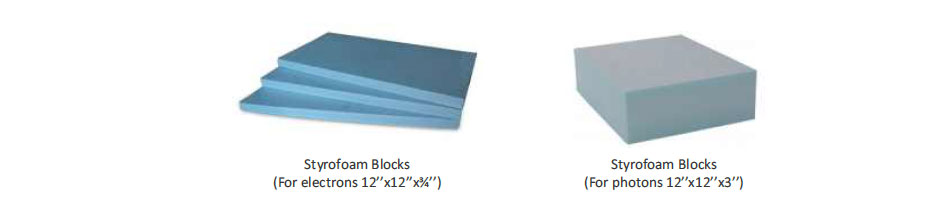

Imported Blue Styrofoam for Photons & Electrons

High density 40 PSI dow® Styrofoam is designed to provide a flat surface essential to the shielding block pouring process.

Expressly tailored to offer dimensional uniformality and very high density. Available in a complete range of dimensions

and thickness for photons and electrons.

For photons 12’’x12’’x3’’ pack of 30 foams

For electrons 12’’x12’’x¾’’ pack of 30 foams
